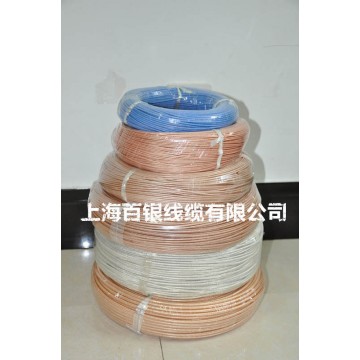

點擊圖片查看原圖|
技術參數/Technical Characteristic |
|||
|
電纜結構/Cable Construction |
|||
|
內導體/Inner conductor |
0.54mm |
7strands silver plated copper |
|
|
絕緣/Insulation |
1.52mm |
Extruded PTFE |
|
|
外導體/Outer conductor |
1.98mm |
Silver plated copper braiding |
|
|
護套/Jacket |
2.49mm |
PTFE tape wrapped, White |
|
|
|
|
|
|
|
電性能參數/Electrical Cable Characteristic |
|||
|
Capacitance |
96.5pF/m |
|
|
|
阻抗/Impedance |
50ohm |
|
|
|
速率/Velocity of Propagation |
69.5% |
|
|
|
工作頻率/Operation frequency |
3.0GHz |
|
|
|
最大工作電壓/Voltage Withstanding |
1200VRMS |
|
|
|
|
|
|
|
|
機械性能參數/Mechanical Cable Characteristic |
|||
|
最小彎曲半徑(靜態)/Inside Bend Radius (Minimum) |
12.7mm |
|
|
|
重量/Weight |
16.2g/m |
|
|
|
工作溫度/Operating Temperature |
-65 up to +250℃ |
||
|
RoHS符合/RoHS Compliant |
是/Yes |
||
|
|
|
|
|
|
衰減/Cable Attenuation |
|||
|
頻率/Frequency(GHz） |
|
衰減/Attenuation(dB/m) |
|
|
0.100 |
|
0.249 |
|
|
0.400 |
|
0.525 |
|
|
1.000 |
|
0.860 |
|
|
2.400 |
|
1.351 |
|
